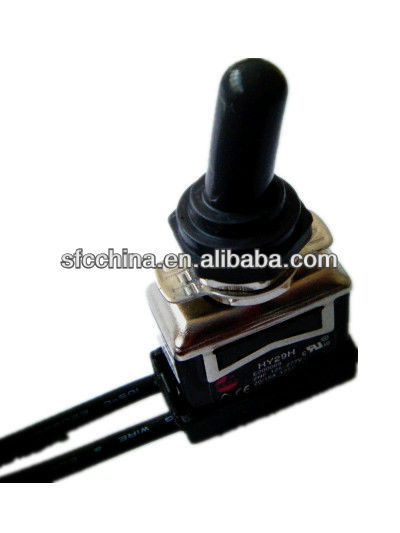

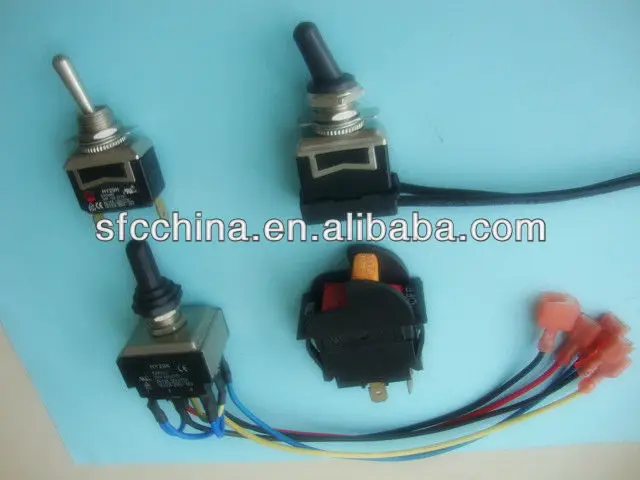

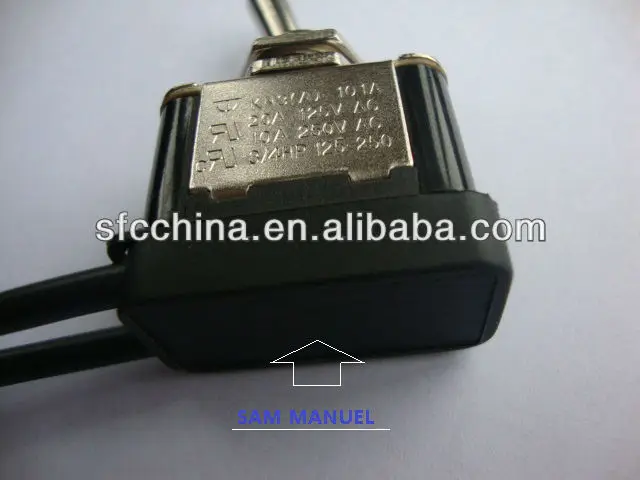

UL approved Toggle Switch with waterproof boot and 12" wire
 |
Product Details:
| Place of Origin: | Zhejiang, China (Mainland) |
| Brand Name: | SFC |
| Model Number: | SFC-HY-29H |
Detailed Product Description
| Max. Current: | 20A | Max. Voltage: | 277VAC |
|---|---|---|---|
| Mechanical Life: | 50000 |
Key Specifications/Special Features:
- Model number: SFC-HY29 series
- Voltage resistance: 1500V AC, 1 minute
- Operating temperature: 85°C
- Operating lifespan: more than 50000 cycles
- Contact rating:
- UL, cUL-20A 125V AC, 15A 250V AC
- 15A 277V AC, 2HP, 125 or 277V
- 18 (12)A 250V AC TUV
- Switch crust dimensions: 14x10mm
