IEC 60320 Inlet C14 PDU, NEMA 5-15R 5 Socket Power Bar with Circuit Breaker,USA Aluminum Shell
 |
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | SFC |
| Model Number: | SFC-IEC-513 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 Piece/Pieces |
|---|---|
| Price: | US $8-20 / Pieces | 10 Piece/Pieces (Min. Order) |
Detailed Product Description
| Application: | Industrial | Certificate: | UL C-UL |
|---|---|---|---|
| Material: | Aluminum Alloy |
SFC-IEC-A1B series 5 to 14" 15Amp Hardwired Power Strip with 5 Outlets
This hard wired type power strip is good for installation in your kitchen, cabinet, on the rack and so on. It is not for normal wall outlets. There is no power cord and plug with this unit.
Features
- 5" to 14” - Durable Aluminium alloy Metal Housing Power Strip
- 5 Black ( white or grey or other) US NEMA 5-15R Outlets, Vertical or level Outlet Orientation
- Hardwired without Power Cord for Mounting at Your Desired Location

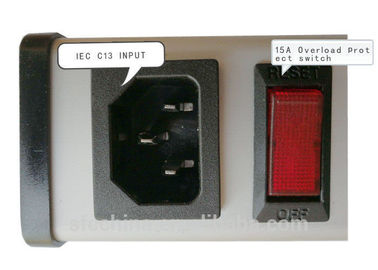

- One IEC C 14 Input on Each Side - (on the Top or Bottom Cover or Both Sides or Ends)
- Electrical Ratings: 100-125V 60Hz 15A
- UL C-UL Approved and Listed
- Outlets 0.12" to 8.39" (3mm to 213mm) apart center to center
- With IEC C13 Cable Easier put in C14 inlet and Faster Installation - Higher Efficiency
Specification |
| |
Model #: | SFC-IEC-51B |
Description: | 5 to 14" 5 Outlet Hardwired Power Strip |
Power Strip Measurement: | L5 to14" x W1.614" x H1.255" (133 to 355 x 45 x 42) * |
Outlets: | 5 |
Outlet Color: | Black, white, grey or other |
Outlet Orientation: | Vertical or level |
Receptacle Type: | NEMA 5-15R |
Outlet Spacing: | 0.12to 8.39" (3 to 213mm) (center to center) |
IEC C14 Inlet: | on Top or Bottom Cover or Both Sides or Ends) |
Voltage Input/Output: | 110-125V 60Hz |
Current Input: | 15A |
Full Load: | 1875VA |
On/Off Switch: | Yes |
Circuit Breaker: | 15A |
Surge Protection: | N/A |
Indicators: | Yes |
Mounting Tabs: | On both ends or bottom |
Mounting Clips: | Mounting Clips included |
SAFETY WARNING:
Installation work of this unit must be done by a professional, a licensed electrician or an electric engineer.
Never install this unit during a thunder storm.
Switch off the power before you start installation work.
This unit is for indoor use only.
This unit is not intended for use in or around wet or potentially wet areas including, but not limited to, aquariums, saunas, showers and fountains.
Risk of Electric Shock!
INSTALLATION GUIDE:
Before installation, you may need to get a IEC C13 Outlet. Decide your wire gauge, and ask store attendant for assistance what color of connectors you should get) from your local hardware or electric supply or home improvement stores. Minimum tools required: A fine to medium fine philips screw driver, and a pair of scissors, and a pair of mid size slip joint pliers
1. Turn off electricity in the house
2. Decide where to place this unit
3. Choose the side you want the cord exit to choose IEC C14 Built in power strips
4. Match the color of the wires and secure the wire connection with proper wire connectors built in IEC C13 plug.(different wire gauge use different colored wire connectors)

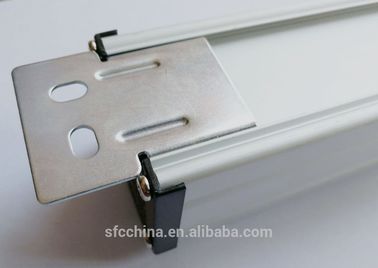

- Mount the power strip where you want it to be: A) For power strips with mounting tabs on both ends: screw down the unit on the floor, wall or in your cabinet or on your rack, where you want it to be B) For power strips without mounting tabs, but to be mounted with clips, place the unit where you want it to be first, make marks where to install the clips, which normally should be placed about min 2”<power strips length away from each end, and then screw the clips down with screws provided. Then, snap the power strip in on the clips
- Push IEC C13 outlet plug into IEC C13 inlet power strips , and push switch to ON. Turn electricity back on, you are ready to go.
Note:
We also custom manufacture for our customers.
